High-Capacity Fiber Optic Polishing Machine with 48 Pcs MU/LC and 36 Pcs SC/FC/ST Connector Polishing and 98% First Pass Yield

Get a free Quotation via Us >>>GO
Get a free Quotation via Us >>>GO
Fiber Optic Patch Cord Production Equipment/Optic Fiber Polishing Machine/Patch Cord Machine
High-Capacity Fiber Optic Polishing Machine with 48 Pcs MU/LC and 36 Pcs SC/FC/ST Connector Polishing and 98% First Pass Yield
Product Description

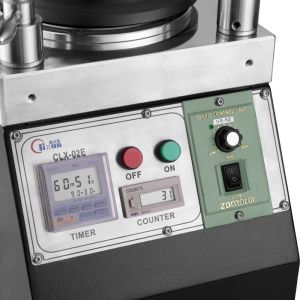

The Fiber Optical Polishing Machine on The Base of International Universal Standards and Long-Term Hands-On Experience, It Exceeds Requirements for Gr-326 End Face Geometry, And This Fiber Optical Polishing Machine Adapt To Four Corners Compression And New I. P. C. Holder Technology Yields The Best Results In The Industry. No Variability in Result When Polishing 1 Or 24 Connectors, Jig Will Be Installed Stable, And Compact Size. This machine is designed for mass production needs, and can process excellent connector end-face of LC, SC, ST, FC, MTRJ, E2000 and ect as well as angle polishing

Product Features


1. High-precision Fiber Optic Polishing Equipment. 2. Can Quickly change polishing jigs. 3. The polishing trails obey the planet orbit. Polishing rotation speed is adjustable with normally 140RPM. 4. Maximum polishing capacity reaches 48 pcs for MU and LC connectors. And for SC, FC, ST. it reaches 36 pcs. 5. High efficiency, The first pass yield for end face quality reach 98%～100% 6. The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber optic connector polishing 3D pass rate> = 98% (100% Typical, according to IEC), 7. APC return loss ≥60dB , PC(UPC)return loss ≥55dB , Insertion loss ≤0.20dB ( typical) 8. The high quality stainless steel material after heat-treatment ensures the high precision & durability of the machine,Excellent stability, Eight or ten years lifetime
