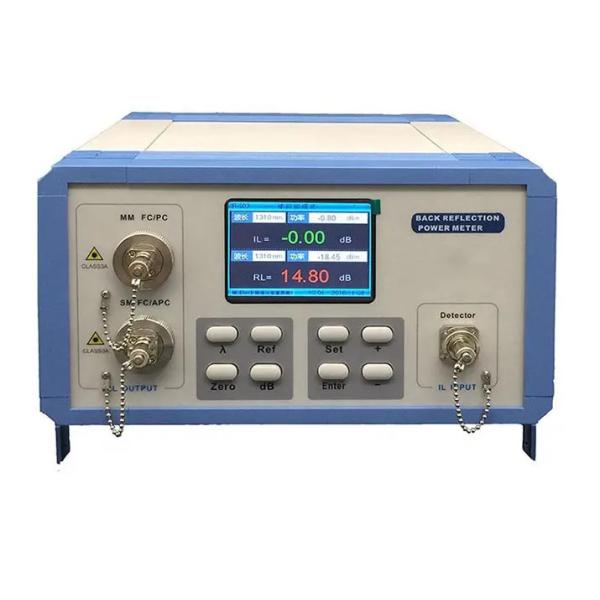

Fiber Optic Patchcords IL&RL Test Station Insertion Loss Return
Loss Tester
Model:CLX-CH03
Place of Origin:ShenZhen,China
Single And Multi-Mode Benchtop Insertion Loss And Return Loss Test
Bench / Optical Loss Tester
Insertion Loss and Return Loss Tester with color screen has stable
and reliable performance, which integrates stable light source,
high-precision power meter, insertion loss meter and return loss
meter into one multifunction instrument. Based on domestic
customers’ requirements, R&D team combined advantages of same
type instrument within China/overseas and then developed the
high-precision tester by several years’s unremitting effort. With
high cost effective and state of art characteristics, it can be
widely used for OEM device verification, research institutions
R&D and construction maintenance in optical fiber/passive
devices/optical communication system industries where demand plug
loss,
Feature
1. Advanced OS
Multiple display, easy handling, fast response and stability
2. High precision
Stable output power/high detection speed/wide measurement range
3. Wavelength synchronous switching
4. Light source and power meter achieve wavelength synchronous
switching under insertion/return loss mode.
5. Multiple working modes
6. Color recognition for test result
Different colors correspond different test results. Pass/Fail is
available by just a glance. P
7. Easy handling
Return loss/insertion loss are synchronously measured. No buttons
switching
8. Rich display interfaces
High definition LCD plus multi-level test interfaces bring rich
visual experience and easing visual fatigue.
9. Easy to remove to clean the optical detector or replace with
another adapter (FC / SC / ST / 2.5mm Universal / 1.25mm Universal
/ MT-RJ) or clean the inside of the APC adapter. Note that you only
need to rotate the light source / power meter interface to remove
it.
10. Clock display
Time is available to reasonably organize work
11. Communication interfaces
The tester can connect to computer and transmit test data to it.
Specialized program give Pass/Fail result of jumper. Test data is
available for analysis, readout and record
Applications
1. Used in pigtails and patch cords.
2. Used in optical connections in optical communication equipment
rooms and optical distribution frames.
3. Used in optical connections in optical apparatus and equipments.
Specification
Optical insertion loss test | Measurement range | +3~-80dBm | Measurement tolerance | ±0.03dB | Display resolution | Logarithmic: 0.01dB; linear: 0.001nW/μW/mW | Test mode | Linear and non-linear | Interface types | Removable: FC/SC/ST/generalΦ2.5mm/ generalΦ1.25mm adapters | Screen | Color LCD | Resolution | 320*240 | Communication interface | USB | Power supply | AC 90-260V | Work environment | temperature:-50C~+550C ;humidity<95%RH No condensation | Dimensions | 265mmX265mmX140mm | Weight | 3.5kg |
|
|
FAQ
1.Are you a factory or a trader?
-we are factory.
2.What is your MOQ?
-MOQ 1 piece.
3.Do you provide sample services?
-Yes, we will provide samples(Samples at prices announced by
chuanglixun).
4.How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended
based on order quantity.
5.How do we pay
-Book in advance or multiple payment methods such as T / T and T /
L.
6.How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide
free repairs, except for consumables). After the warranty period,
accessories will continue to be provided and will be charged at
cost.
7.Do you provide customized services?
-Yes, we provide customized services, According to customer
requirements and description.
